Характеристики Галерея Характер продукции Спросите цитату

Характеристики

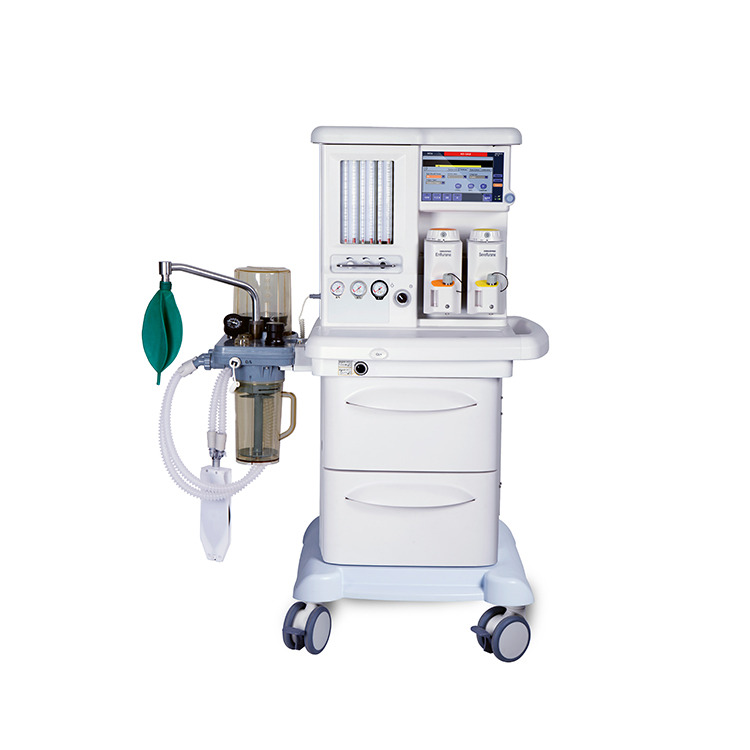

Model Number: X45

Power Source: Electric

Warranty: 1 Year

After-sale Service: Free spare parts

Material: Metal, Plastic

Shelf Life: 1years

Quality Certification: ce

Instrument classification: Class III

Safety standard: IEC60601

Driven mode: Pneumatically driven and electronically controlled

Patient Type: Neonatal, Child, Adult

Display: 10.4" TFT LCD color touch screen

Graph Display: P-t, F-t, loops (P-V, V-F) optional

Ventilation Mode: VCV, PCV, SIMV-VC, Manual optional

Flowmeter: O2, N2O, Air ;6 tubes Flowmeter

Vaporizer: Selectatec Mounnting CE marked universal Vaporizer

Tidal Volume: 10-1600ml

Drawers: 2 drawers

Options: YOKE, ACGO, AGSS, ETCO2, AG

Основная информация

Сертификация: ce

Model Number: X45

Оплата и доставка Условия

Характер продукции

Product Description

Features
Suitable for Neonate, Pediatric and adults, Tidal Volume setting 50~1500mL (Optional: 20~1500mL)
User friendly interface	10.4”TFT touch screen for easy review and simple operation
Sufficient Ventilation Modes	VCV, PCV, PSV, SIMV-VC, Manual Standby
Optional	PRVC, SIMV-PRVC, SIMV-PC
z Gas supply	O2, N2O, Air
6 tubes Flowmeter	0.05~1L/min, 1.1~10,12,15L/min(20℃ )
Optional	Auxiliary flowmeter with oxygen port
z Gas system	Hypoxic guard system, ORC, O2 flush
Vaporizer mount	Selectatec bar support 2 vaporizers
Optional	ACGO, 2 Yokes (O2 & N2O), AGSS, Suction
z Good integration	Built-in active expiratory PEEP valve
	Built-in battery
	Lung mechanics parameters and loops ( P-V, V-F)
	z Integrated absorber system, with heating function,bypass
	design, easy assembling, less leakage, autoclavable.
	z 24 hours trend

Measurement
Pressure values	Ppeak, Pmean, Pmin,Pplat,PEEP
Volume/Flow values	Vti, Vte, MV, MVspn
Loops	Pressure - Volume, Volume - Flow FiO2, f, fspn, I:E, Cdyn
Waveforms	Paw, Flow, Volume, Pleth
Optional	EtCO2, FiO2, SpO2, AA

Alarms

MV, Paw, Continuous Paw high, Vte, Rate, FiO2, Mains failure,
Battery low, Battery discharged, Gas supply failure, O2 supply
failure, Apnea, EtCO2
