Product Description

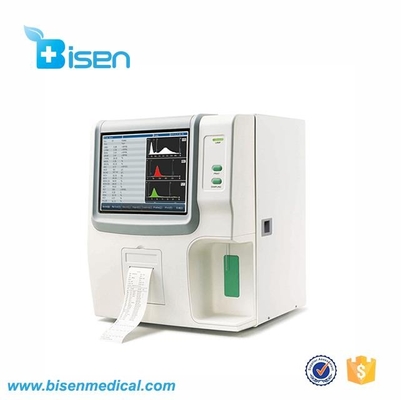

BS-7600 3 Part Differentiation Touch Screen Fully Automated Clinical Cell Counter Machine rayto rt 7600 auto Hematology Analyzer

Features

20 parameters+3 histograms

2 counting channels, 3-part differentiation of WBC

2 Counting mode: whole blood and prediluted

60 samples per hour

Up to 50000 sample results (including histograms) can be stored

10.4'' TFT color LCD with touch screen

Built-in thermal printer, optional external printer

External AC adapter avoids electronic noisies, enhancing accuracy

Multi-language software available on request

Technical Parameters

Parameters	WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, MCHC, MCH, MCV, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR and Histograms for WBC, RBC and PLT
Principles	Electrical resistance for counting WBC, RBC and PLT
Performance	Parameter Precision (CV %):
	WBC (109/L) 2.0(7.0-15.0)
	RBC (1012/L) 1.5(3.50-6.00)
	HGB (g/L) 1.5(110 – 180)
	MCV (fL) 0.4(80.0 – 110.0)
	PLT (109/L) 4(100 – 500)
Sample Volume	Prediluted: 20µL, Whole Blood: 9.8µL
Aperture Diameter	WBC 80µm; RBC 50µm
Throughput	60 samples per hour
Display	10.4'' TFT Color LCD with touch screen, Resolution: 800×600
Alarms	Error messages
Carryover	WBC/RBC/HGB<0.5%, PLT<1.0%
Input/Output	RS-232, USB, LAN, keyboard and mouse interface
Printout	Thermal printer, 55mm width paper, various printout formats, external printer optional
Operating Environment	Temperature: 15°C~35°C; Humidity: 10%~90%
Power Requirement	AC 110-220V, 50/60Hz
Dimension L×W×H(mm)	436×363×367
Weight	18Kg

Reagents

Actual Images
